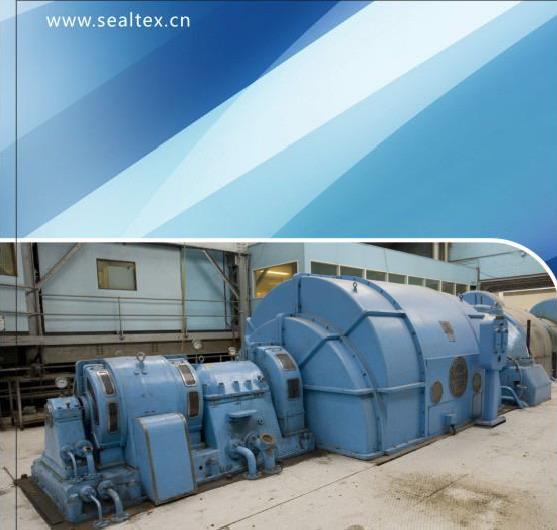

Application of tn-9001 high temperature insulation board in steam turbine

Soto Shanghai is a long-term supplier of asbestos free board and high-temperature insulation board tn-9001. It is a long-term partner of Interface solutions in the United States. The tn-9001 supplied by soto is imported from the United States.

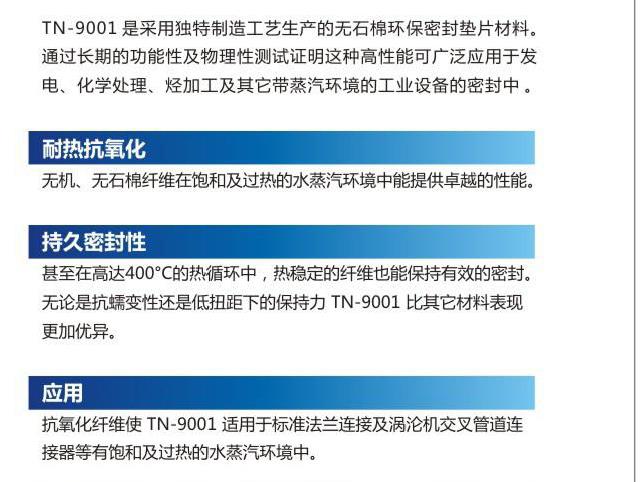

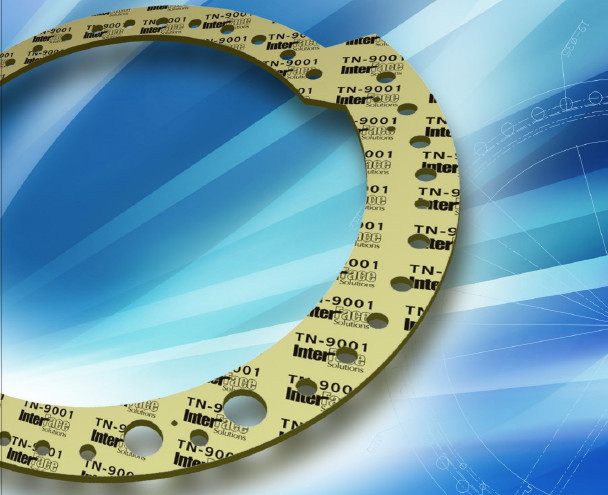

Tn-9001 is an asbestos-free environmental sealing gasket material produced with a unique manufacturing process. Through long-term functional and physical tests, it has been proved that this kind of high performance can be widely used in power generation, chemical treatment, hydrocarbon processing and other industrial equipment in steam environment的密封中。

Property 1: heat and oxidation resistance, inorganic and asbestos free fibers provide excellent performance in saturated and superheated water vapor environment.

Feature 2: durable sealing, even in the heat cycle of up to 400 ℃, the thermal stability of fiber can maintain effective seal.The tn-9001 performs better than other materials in terms of both creep resistance and retention under low torque.

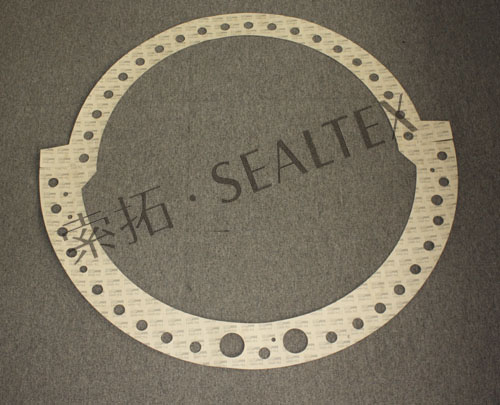

Application: antioxidant fiber makes tn-9001 suitable for standard flanged connections and turbine cross-pipe connectors in saturated and superheated water vapor environments.

Technical parameters：

The density ofg/cm3                          1.28

Compressible rate（在34.5MPa下） %         15-30

Elastic recovery%                           ≥40

Tensile strength MPa                        ≥13.79

ASTMF-36IRM903  5小時(shí)  150℃

Change in tensile strength %                          ≥40

Variation in thickness %                              ≤20

Compressible rate %                              ≤35

ASTMF-146 fuelB 5小時(shí) 23℃

Thickness increase %                              ≤30

Increase the weight %                              ≤30

fiber                                    芳綸纖維

Rubber type                                丁&腈橡膠

Available with standard thickness of 1.6mm and coil size of 1016mm*26M/ coil

The tn-9001 high-temperature insulation board and tn-9001 adhesive sheet for power plant supplied by Shanghai suto are imported from the United States, and tn-9001 MADE IN USA/InterFace Solutions.

The new tn-9001 has the words "InterFace Performance Materials" in the new InterFace logo of the United States, please rest assured to buy
